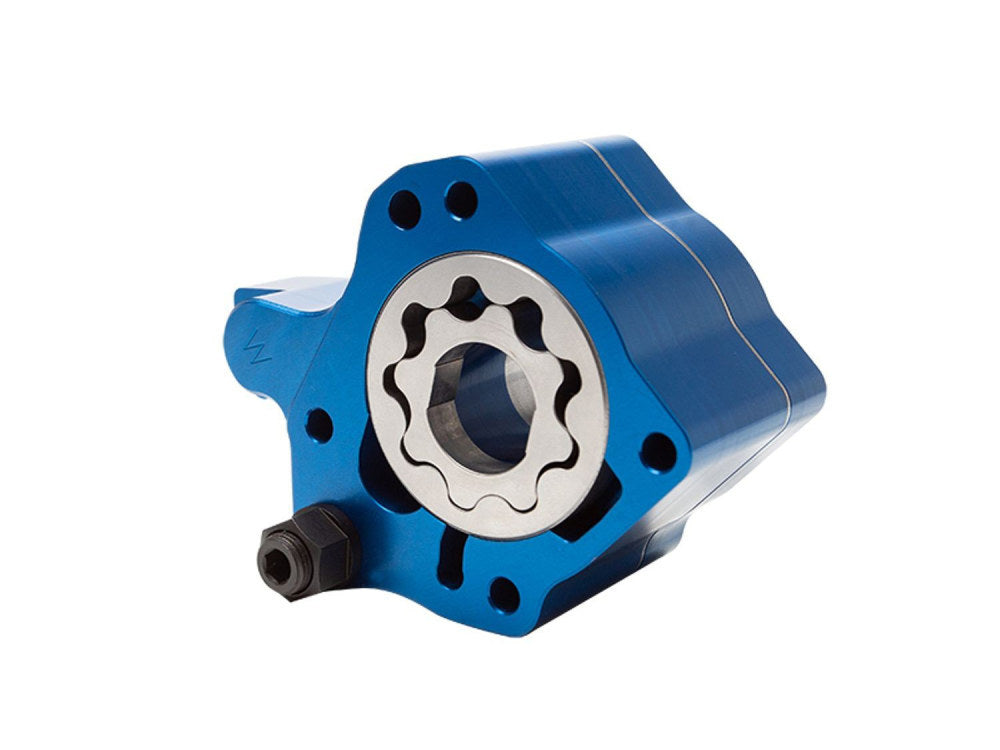

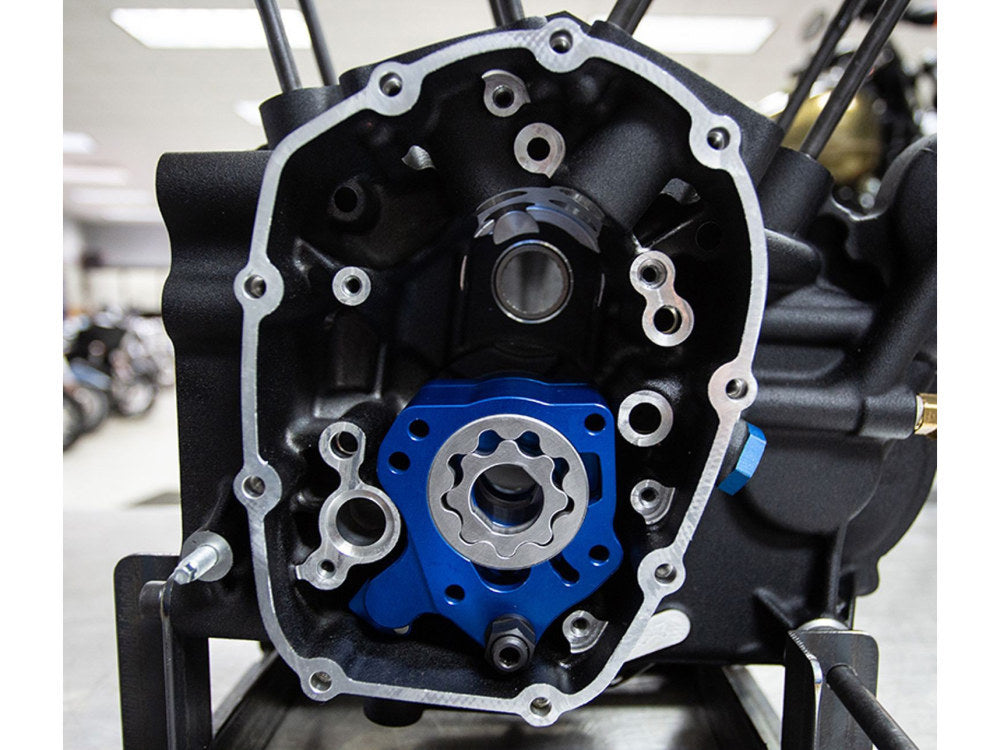

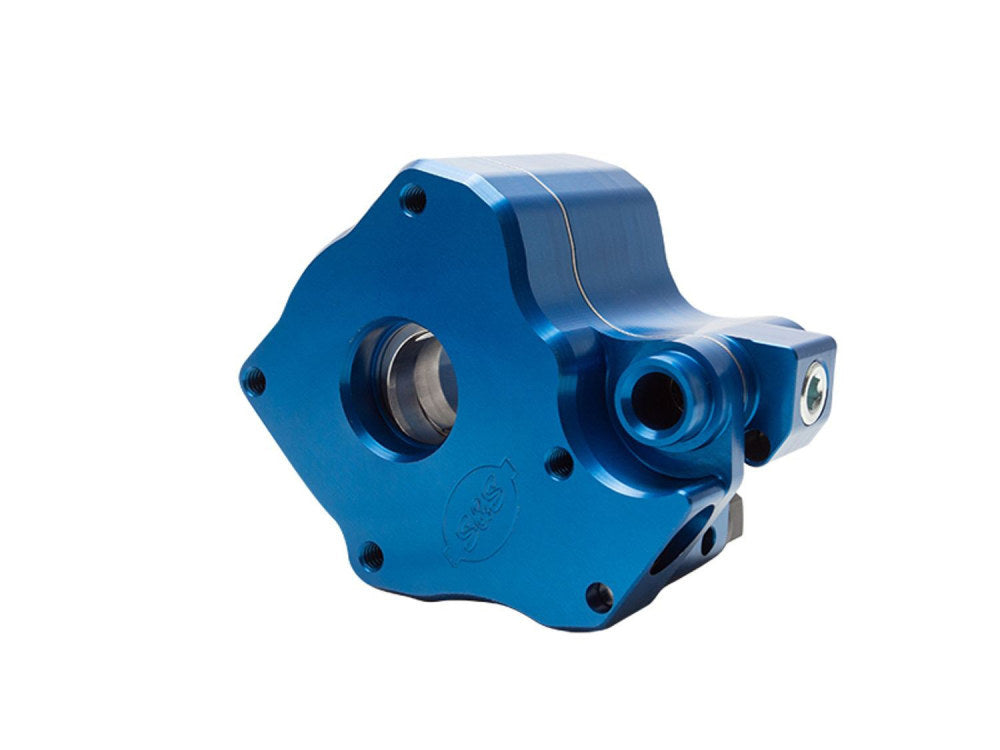

High Volume Oil Pump. Fits Touring 2017up with Water Cooled Engine & Touring 2024up

Fitment Information:

* Fits Water Cooled Touring Models 2017up & All Centre Cooled Touring Models 2024up

Features & Benefits:-

* Precision Machined from Billet Aluminum.

* Blue Anodized Finish.

* Passage Plugs are removeable for Servicing.

* Steel wear plate to protect plate body being scored by pump rotors.

* Works with OEM Cam Plate

Tech Tips:-

* The Oil Pressure Relief Valve on the S&S Oil Pump is set to Start the relieving process at approx. 45psi - that being said It is common to see 25-60psi when riding - Resist the temptation to interfere with the screw!

* If you will be reusing your existing cam plate, wash the cam plate and inspect the bearing surfaces. Refer to the manufacturers specifications for service wear limits.

NOTE: If your cam plate has non-serviceable oil galley plugs and has been exposed to debris from previous engine failure or other foreign material, it is almost impossible to effectively clean those passages. A new cam plate may be a better option.

Proudly Made in the USA by S&S Cycle !
